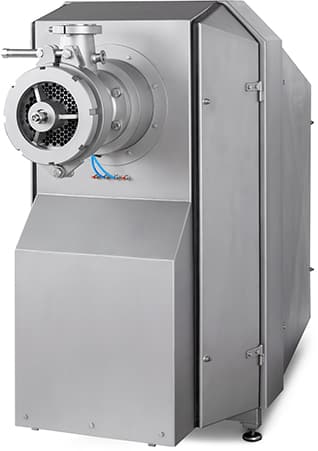

Heavy Duty Emulsifiers MC 250 & MC 300

The industry “Work Horse”
– scansteel foodtech emulsifier does it all!
The scansteel foodtech MC 250 & MC 300 emulsifiers have a unique dual
feeding/two steps feeding system:

• Stand-alone feeding pump, feeding the lining/housing of the MC 250 & MC 300.

• Feeding/crushing screw, feeding the knife set.

The feeding pump with its own feeding screw with block breaking/bone breaking capabilities
force-feeds the scansteel foodtech MC 250 & MC 300 emulsifier lining/housing. Entering the lining/housing, the feeding screw of the MC 250 & MC 300 further force-feeds/grinds any
particles, being frozen meat raw materials and/or bones. The feeding screw with its recessed
3-bladed knife distributes any products continuously towards the first hole plate securing optimal cutting/emulsifying effect.

Designed to emulsify/particle reduce,
examples only, products such as:
• Pre-broken frozen meat raw material blocks
• Fresh meat raw material
• Chicken bones, pork bones, beef bones
• Frozen and fresh combination of above
Download our brochure
Direct Steam Injection System:
Heavy Duty steam valves connected directly in-line in the lining/feeding screw
to secure even distribution of steam and subsequently final temperature.
Knife Set:
The scansteel foodtech MC 250 & MC 300 emulsifiers can be equipped with single, double, or triple knife set. Controllable emulsifying effect with more/less hole plates:

1 hole plate =
2 hole plates =
3 hole plates =

1 (one) cutting edge against hole plate.
3 (three) cutting edges against hole plates.
5 (five) cutting edges against hole plates. With the wide selection of knives and hole plates, the scansteel foodtech MC 250 & MC 300 emulsifiers ensure you get the final emulsion/final product quality you require.

Technical Specifications

Capacity (approx.)
Power motor:
Length:
Width:
Height:
Weight:

Model: MC 250

4000 – 12,000 kg/hour
90-200 kW
2300 mm
1000 mm
1700 mm
1,500 kg

Model: MC 300

6000 – 18,000 kg/hour
90-200 kW
2300 mm
1000 mm
1700 mm
2,000 kg
