GRINDER – SINGLE WORM: SUPERGRIND SG 400/260

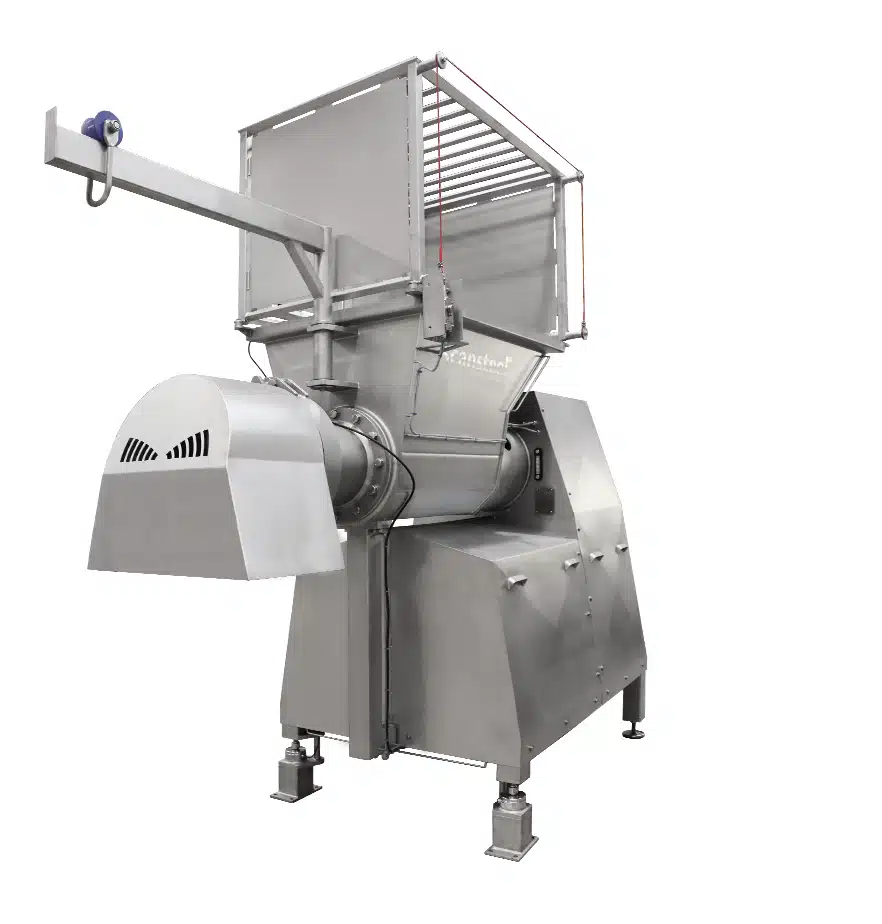

scansteel foodtech® SuperGrind single worm/auger grinder SuperGrind 400/260
shown fully assembled,
ready for production.
Shown with safety inlet
cage to prevent meat raw
material, such as frozen
blocks, from being ejected
during feeding of the
grinder.
scansteel foodtech® single worm/auger grinder SuperGrind 400/260
shown with all side panels,
dismounted, side view.
Designed for easy access
at maintance and
inspection. The automatic
greasing system for main
bearing and front bearing
is also shown.
scansteel foodtech® SuperGrind single worm/auger grinder SuperGrind 400/260
shown with all side panels
dismounted, rear view.
Visualizes perfectly the
design with easy access
for maintenance and
inspection.
scansteel foodtech® SuperGrind single worm/auger grinder SuperGrind 400/260
Cabinet without worm
showing the flights of
the lining.
scansteel foodtech® SuperGrind single worm/auger grinder Front end of SuperGrind
400/260 shown
disassembled, with worm
in place, ready for
mounting of 3-bladed
cut-knife. Cutknife
recessed into worm.
scansteel foodtech® SuperGrind single worm/auger grinder Front end of SuperGrind
400/260 shown with
worm and 3-bladed
cut-knife assembled.
scansteel foodtech® SuperGrind single worm/auger grinder SuperGrind 400/260
with knife set and front
end fully assembled.
Automatic greasing of
front end bearing is shown
as well.

The SuperGrind 400/260 can be equipped with 90 kW, 110 kW, 132 kW, or 160 kW motor and with single or double knife set. Globally, the scansteel foodtech® SuperGrind 400/260 is within its size/capacity probably the toughest and most Heavy Duty “Work Horse” among meat raw material grinders. Designed specifically for global pet food and rendering industries for grinding of:

• Entire beef bones – all types including femur bones.
• Entire pork bones – all types including femur bones.
• Poultry bones – all types.

• Fish bones – all types.
• Pre-broken bones.
• Soft meat raw material.

The SuperGrind 400/260 is designed with a safety inlet cage to prevent meat raw material, such as frozen blocks, from being ejected during feeding of the grinder. The SuperGrind 400/260 is designed with easy access for maintenance and inspection.

scansteel foodtech® SuperGrind single worm/auger grinder

Cabinet without worm showing the flights of the lining.

scansteel foodtech® SuperGrind single worm/auger grinder

Front end of SuperGrind 400/260 shown disassembled, with worm in place, ready for mounting of 3 bladed cut-knife. Cut-knife recessed into worm.

scansteel foodtech® SuperGrind single worm/auger grinder

Front end of SuperGrind 400/260 shown with worm and 3 bladed cut-knife assembled.

Technical Specifications

Motor:

110 – 160 kW motor
